Continuous Conveyor

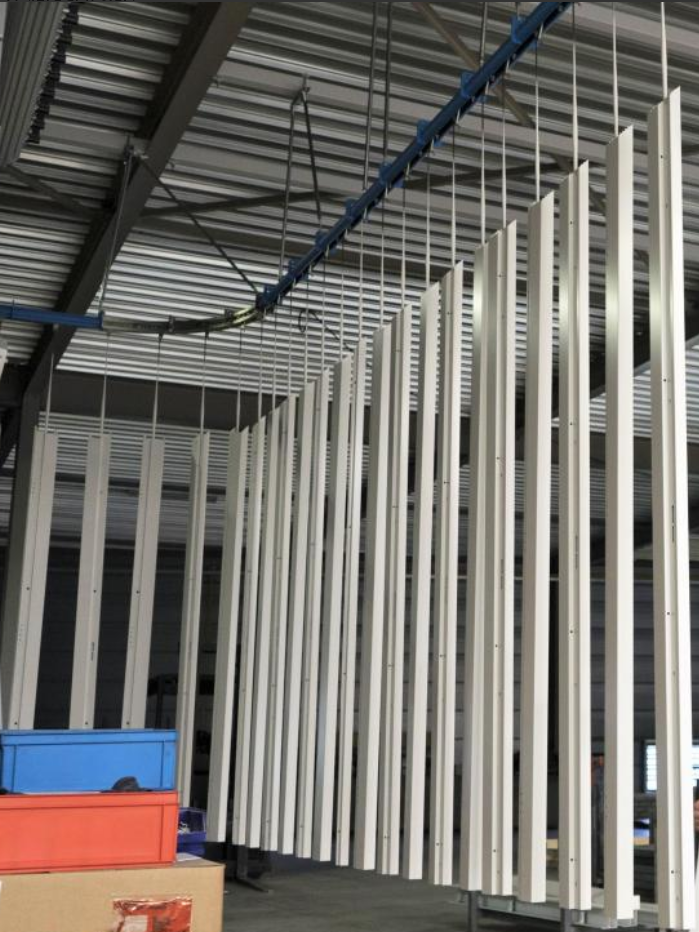

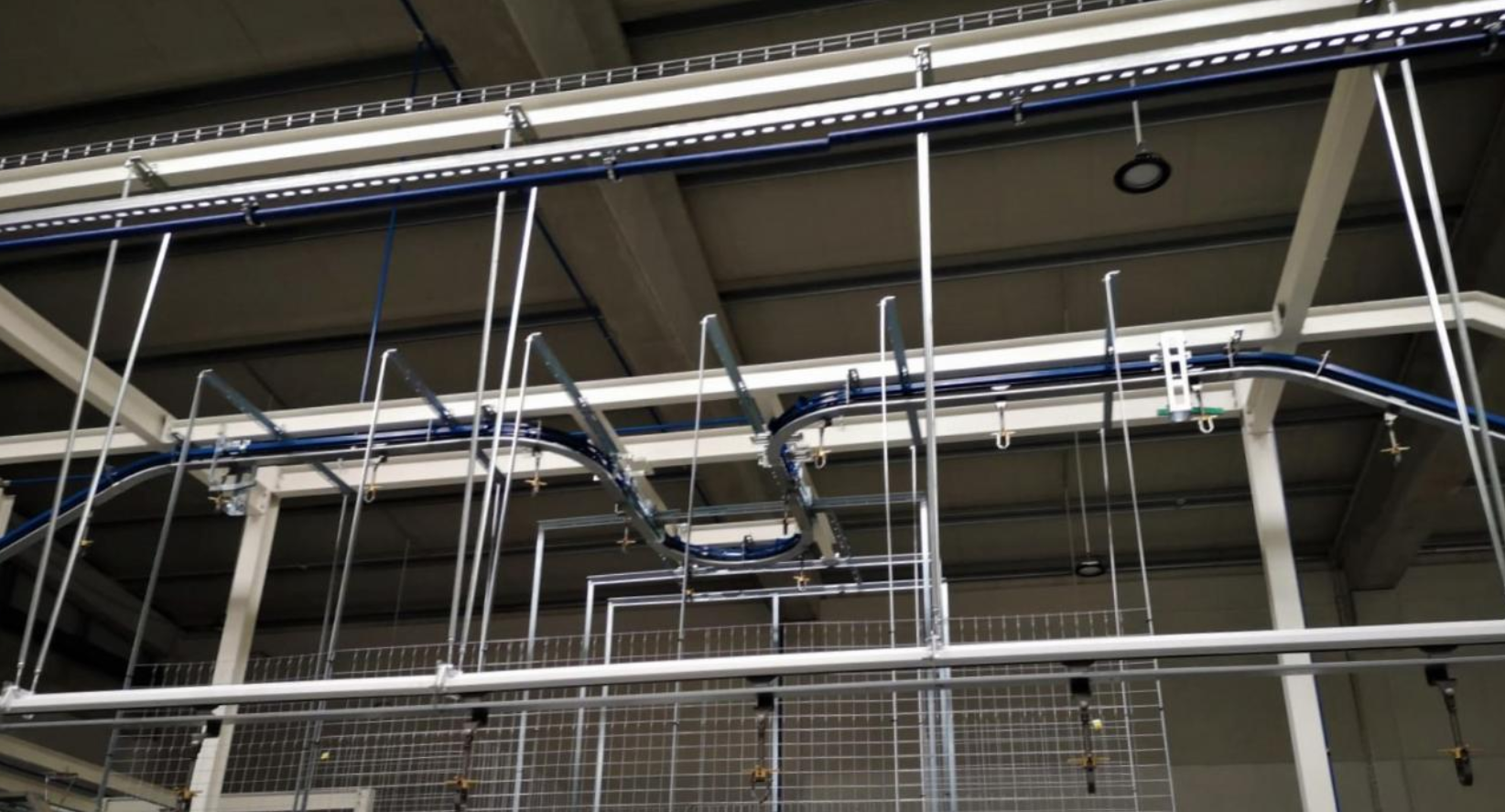

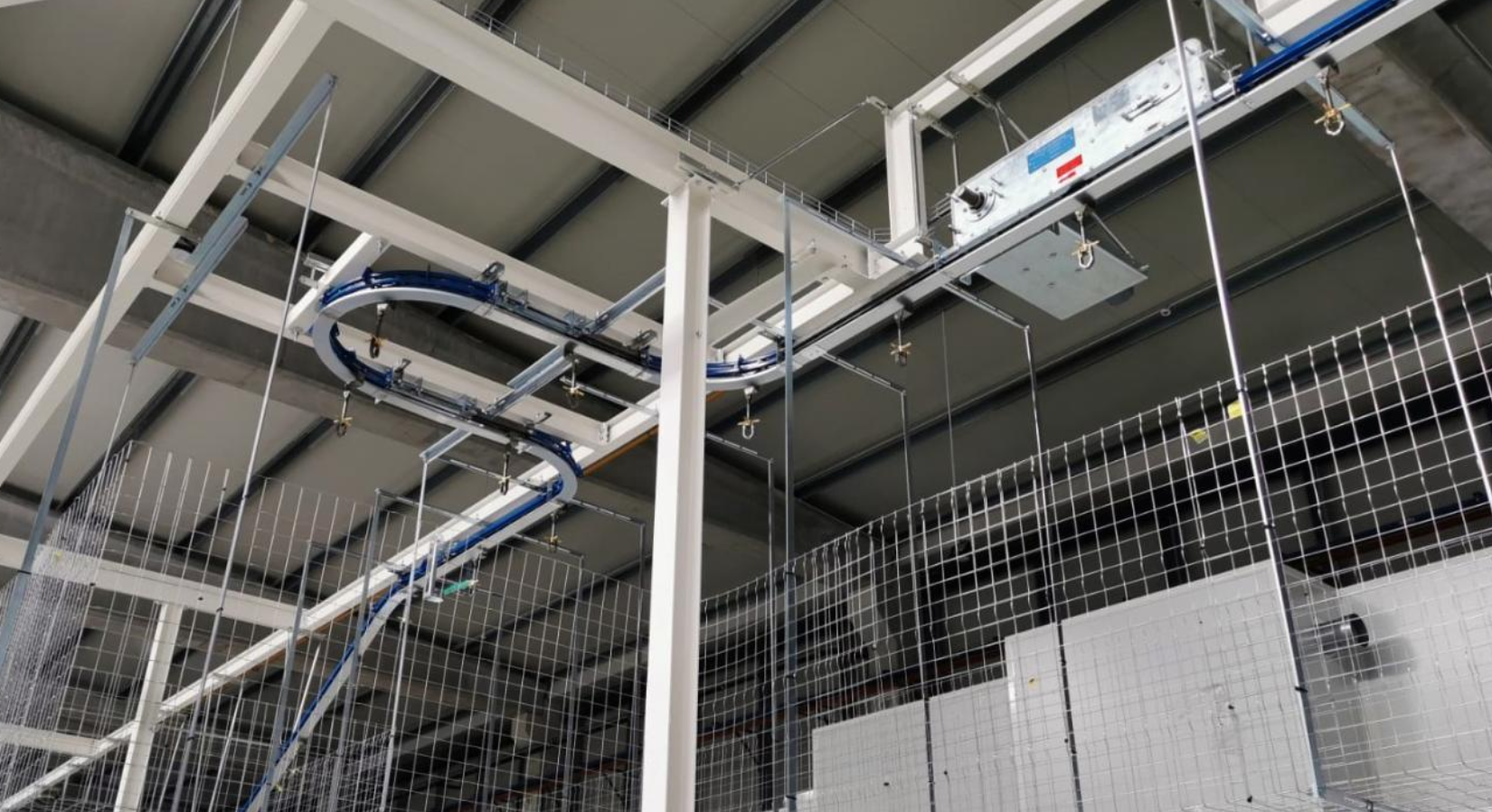

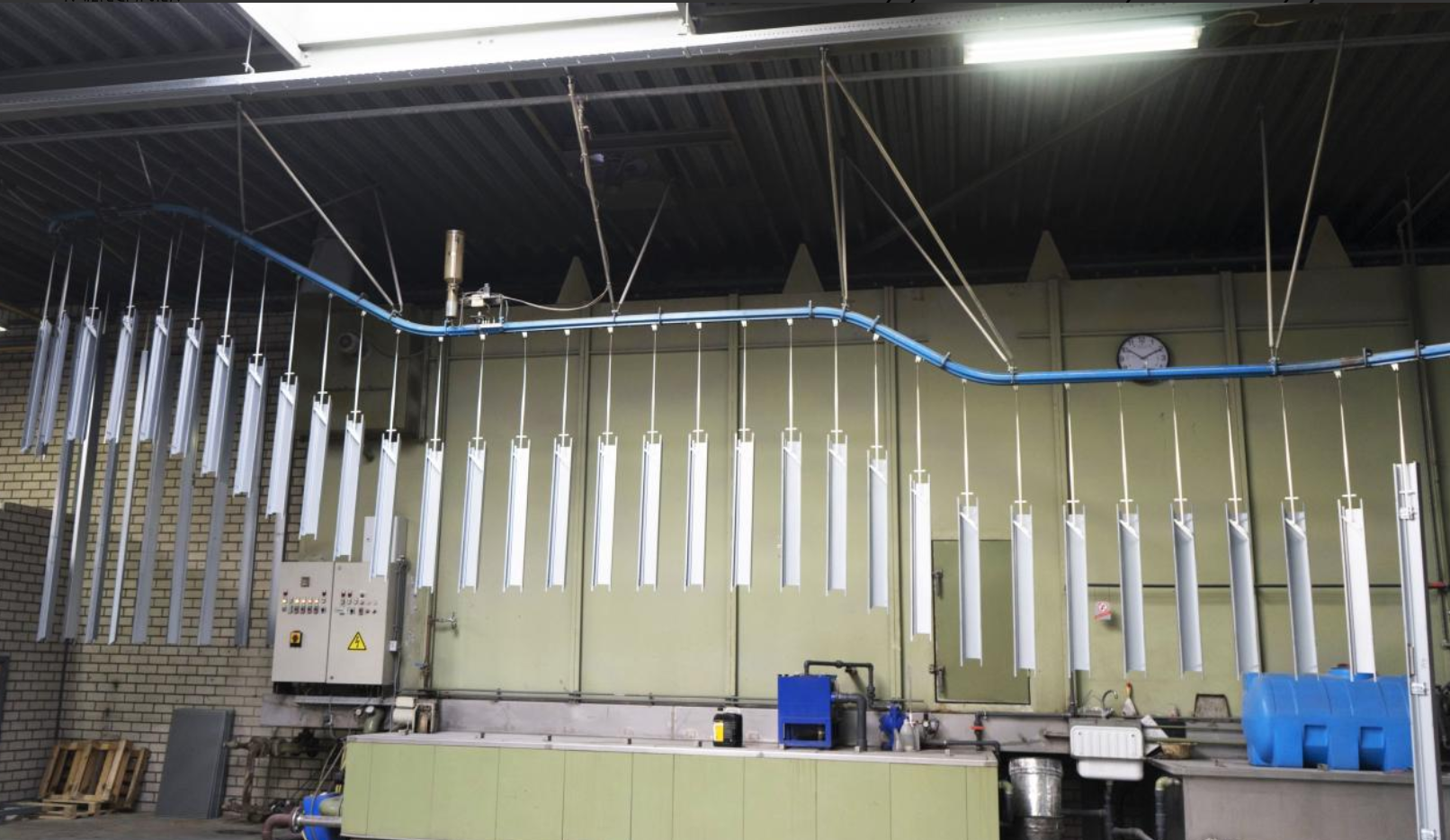

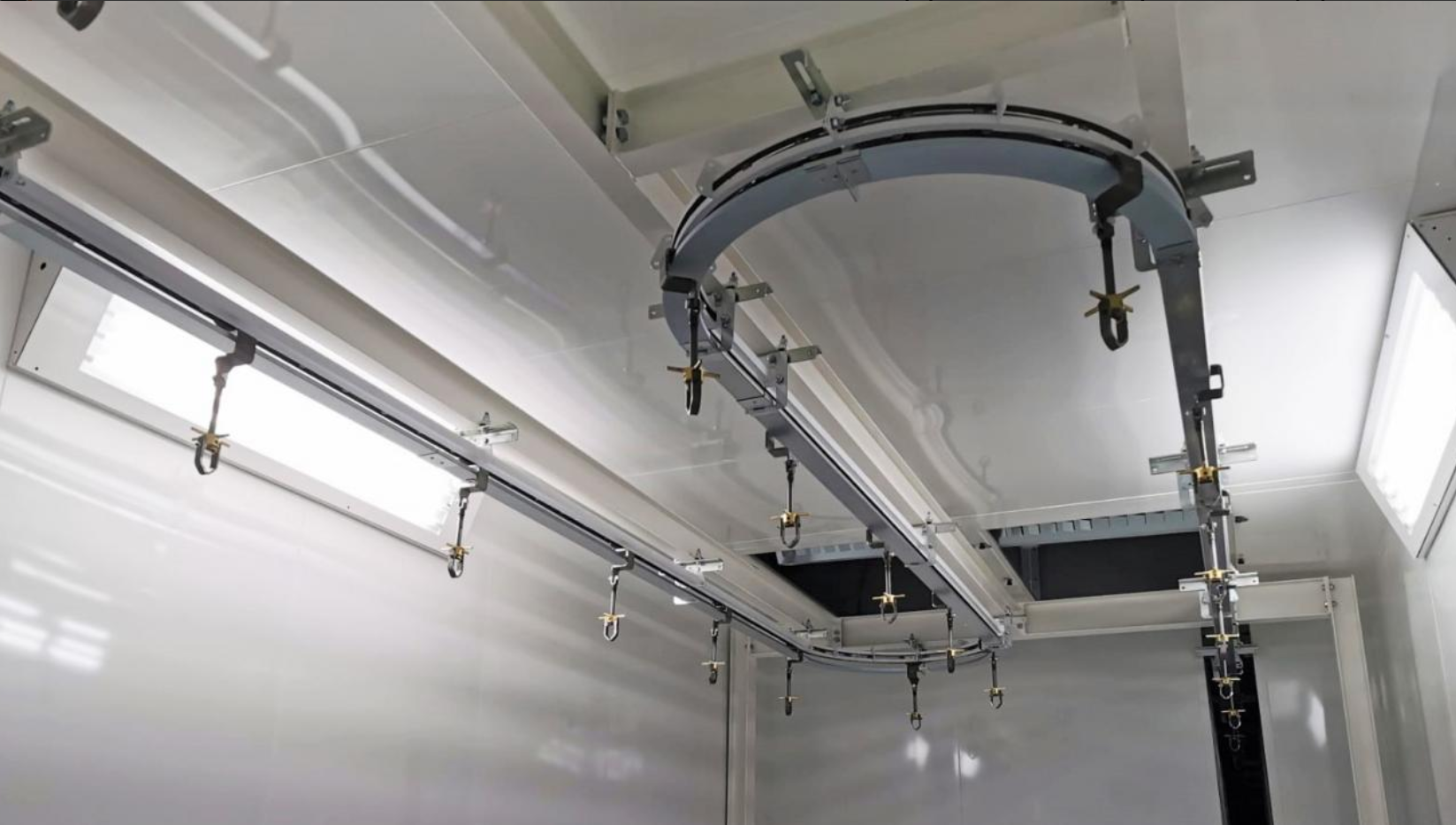

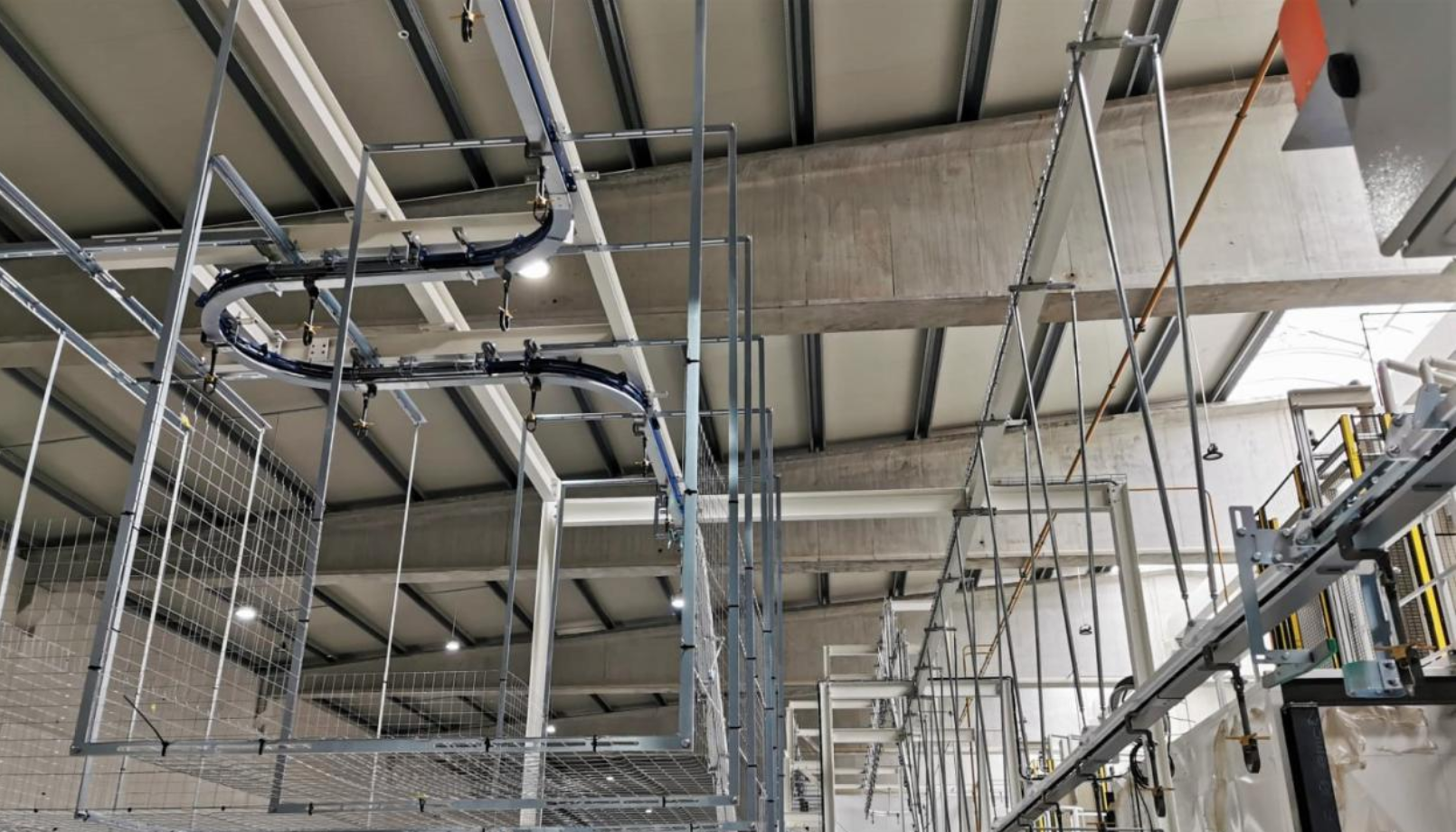

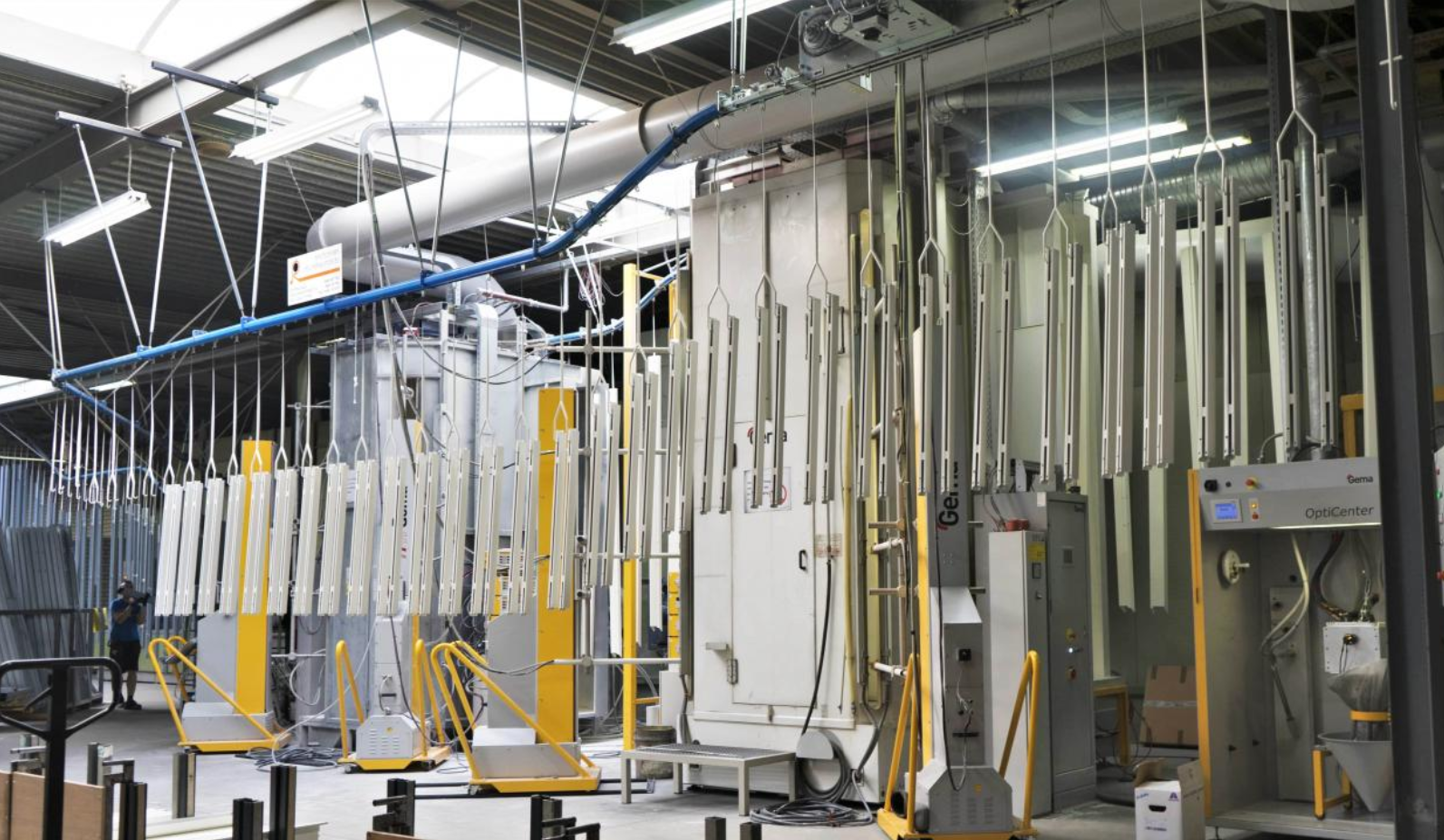

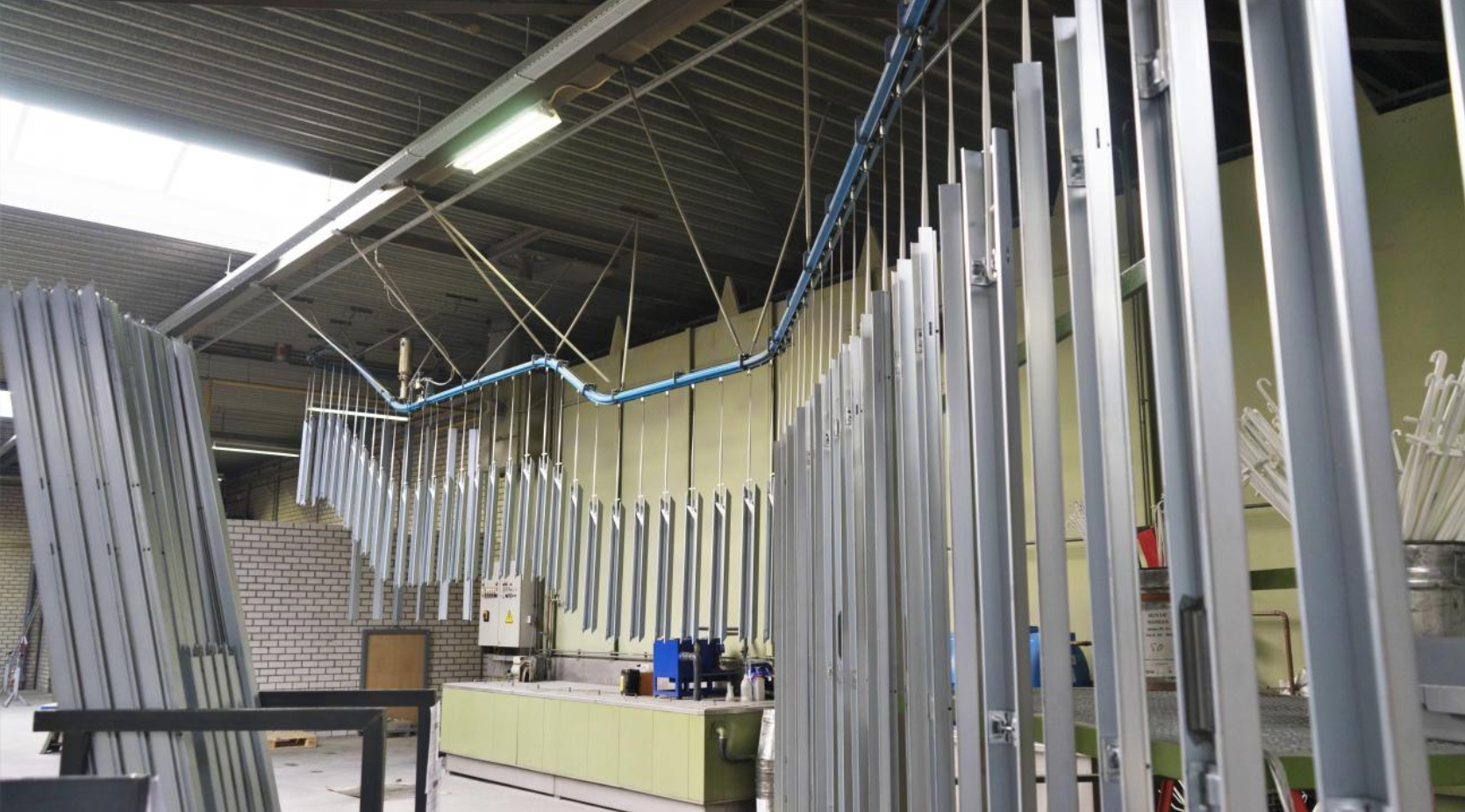

Continuous Powered Chain Conveyor – Enclosed Track
📌 Product Overview:
The continuous powered chain conveyor with enclosed track is a reliable solution for moving parts continuously in industrial environments. The enclosed rail protects the chain from dust, moisture, and debris, extending system life while reducing maintenance. It is ideal for paint lines, assembly operations, and in-plant logistics.
📌 Key Benefits:
- Automated and continuous transport without interruption.
- Fully enclosed chain for increased durability.
- Low friction and minimal lubrication required.
- Space-saving design with minimal floor obstruction.
- Quiet, smooth operation.
📌 Technical Features:
- Steel enclosed track with integrated powered chain.
- Max load per bar: up to 3,200 kg (7,055 lb) depending on setup.
- Constant speed, customizable as needed.
- Compatible with curves and inclines.
- Ideal for frames, metal parts, profiles, panels, etc.
Performance Example:
Rail Type | Chain Pitch | Max Load | Typical Use |
Enclosed rail 1½″ | 1½″ | 2,000 kg (4,409 lb) | Light to medium-duty painting |
Enclosed rail 2″ | 2″ | 3,200 kg (7,055 lb) | Assembly or surface treatment |
📌 Why Choose This System?
- Simple and robust design for high production rates.
- Low maintenance thanks to protected and durable setup.
- Suitable for industrial environments like painting, logistics, and assembly.
- Excellent cost/performance ratio for linear transport needs.
Ready to revolutionize your powder coating process?
✨ Contact us today to learn how the continuous powered chain conveyor can boost your productivity?
Continuous Powered Chain Conveyor – I-Beam Track
📌 Product Overview:
The powered overhead conveyor using I-Beam rail is designed for transporting heavy parts in demanding industrial environments. With an open I-beam track and powered chain on trolleys, the system offers outstanding mechanical strength and high load capacity, ideal for moving bulky or complex components.
📌 Key Benefits:
- High load capacity (up to 1,200 kg (2,646 lb) per trolley).
- Rugged structure for heavy-duty applications.
- Easy access for inspection and maintenance.
- Suitable for multi-support trolleys and high-frequency operations.
- Excellent resistance to dynamic loads.
📌 Technical Features:
- Open I-beam rail in 3″, 4″, or 6″ sizes with powered chain on trolleys.
- Max load per trolley: up to 2,000 kg (4,409 lb).
- Chain pull: up to 6,500 kg (14,330 lb) depending on layout.
- Suitable for dusty, hot, or in-line processing environments.
📌 Performance Example:
I-Beam Rail | I-Beam Size | Max Load per Trolley | Typical Applications |
Series 3000 | 3″ | 250 kg (551 lb) | Standard part transport |
Series 4000 | 4″ | 500 kg (1,102 lb) | Reinforced industrial assembly |
Series 6000 | 6″ | 1 200 kg (2 646 lb) | Heavy-duty continuous handling |
I-Beam Rail 8″ | 8″ | 2,000 kg (4,409 lb) | Handling of very heavy structures |
📌 Why Choose This System?
- Ideal for handling heavy and oversized components.
- Resistant to wear, impacts, and cyclical loads.
- Easily integrates into demanding industrial processes.
- Suitable for painting, e-coating, or heavy-duty logistics.
Ready to revolutionize your powder coating process?
✨ Contact us today to learn how the Continuous conveyor I-Beam can boost your productivity.
