Batch Oven

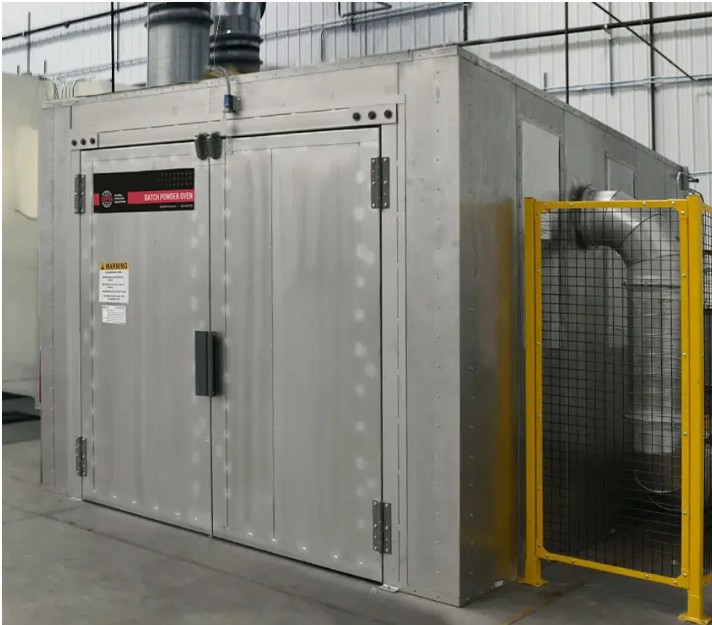

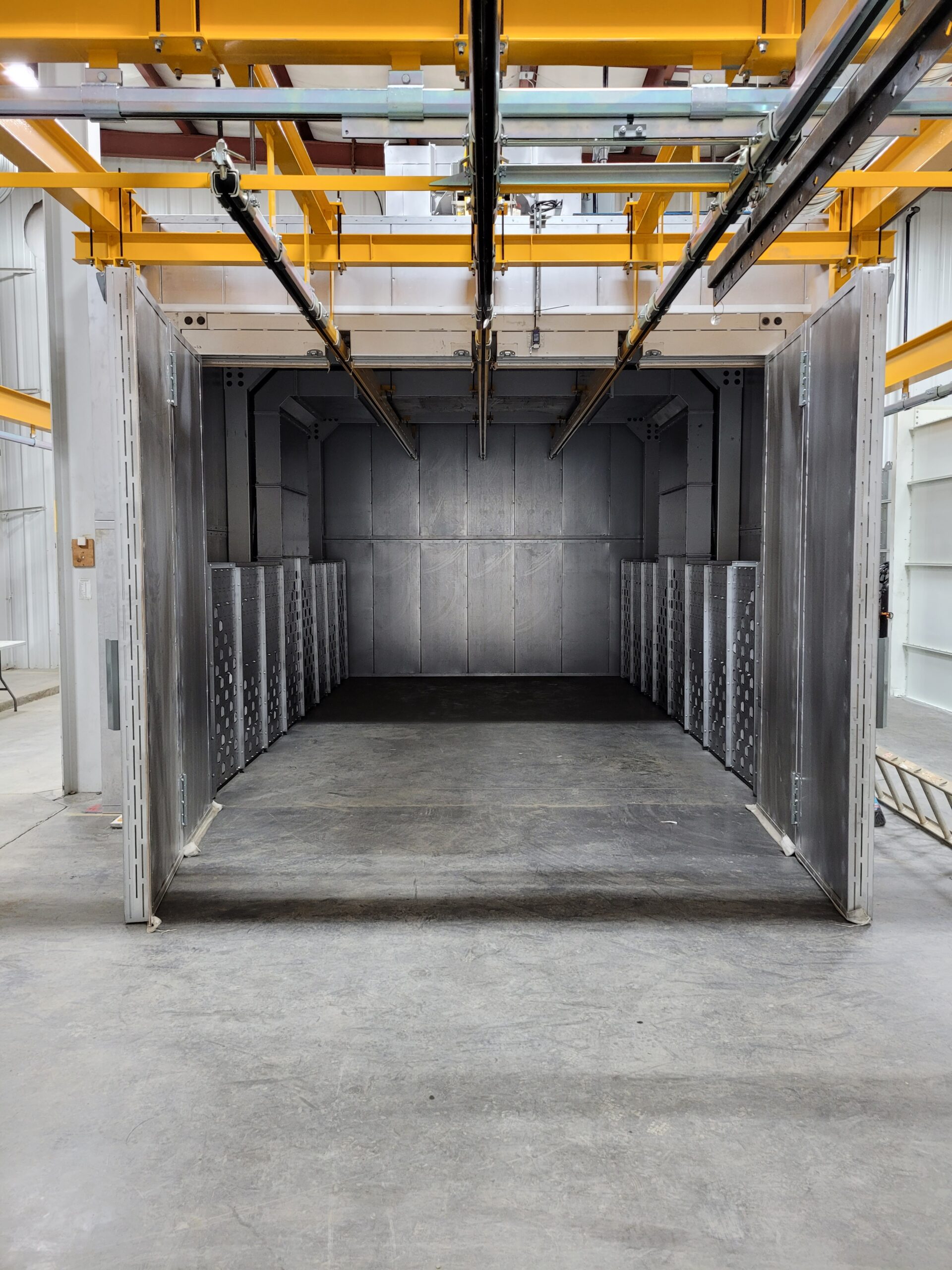

Batch Powder Oven

📌 Product Overview

• Purpose: Precision-engineered for small to medium-sized batch powder coating applications.
• Benefit: Delivers consistent, high-quality finishes with excellent heat distribution and quick temperature rise, resulting in shorter cycle times and higher throughput.
• Availability: Offered in a range of pre-engineered sizes and options to meet budget and lead time expectations.

📌 Key Features

Temperature Control

• Exceptional temperature uniformity and lower air change rates → prevents powder from blowing off parts.
• Quick heat-up and recovery rates → increases productivity.

Construction & Design

• Heavy-duty steel support structure with bolt-together assembly.
• Four-inch insulated panels (20-gauge aluminized steel with mineral wool batt).
• Adjustable uni-flow air distribution tabs for temperature uniformity.
• Direct gas-fired burner (natural gas or propane).
• Roof-mounted heater box.
• Standard temperature range: 300–500°F.

Durability

• • Designed and built for many years of heavy use.
  • Most components are built or assembled in-house for quality control.

• Ensuring all components meet our quality standards and integrate seamlessly into the product.

Compliance

• Designed to meet NFPA 86 safety standards for ovens and furnaces.
  • so you can more easily achieve any necessary equipment permits and stamped drawings, while ensuring employee safety.

📌 STANDARD FEATURES

• Steel support structure with trouble-free, bolt-together assembly
• Four-inch insulated panels made from 20-gauge aluminized steel with four-pound, heavy-duty mineral wool batt
• Built-in, adjustable uni-flow air distribution tabs for temperature uniformity
• Converge control panel
• Direct gas-fired burner, operating on natural gas or propane
• Roof-mounted heater box
• Standard temperature range: 300-500 degrees Fahrenheit

📌 Available Options

• Drive-thru configuration.
• Rear-mounted heater box.
• Control panel upgrades: INSIGHT or Proven.
• Electric heating option.
• Six-inch insulated panels.

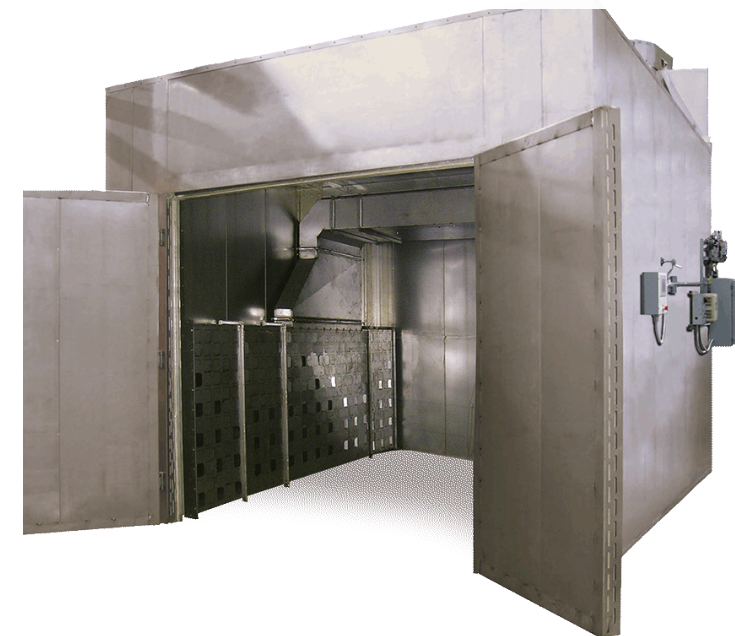

Batch process ovens

📌 Purpose & Design

Batch Process Ovens are engineered for drying, curing, baking, or preheating various products. These ovens feature compact construction with advanced heat transfer technology for uniform, balanced heating inside the oven, ensuring a high-quality finish.

📌 Key Features

• • Construction:
    • 4-inch insulated panels made from 20-gauge aluminized steel
    • Insulated with 4-pound heavy-duty mineral wool batt
    • Tongue-and-groove edges for precise panel assembly
    • Steel support structure with bolt-together assembly
  • Air Distribution:
    • Uni-flow air distribution system with adjustable tabs
    • Circulates heated air on both sides of the oven for balanced temperature
  • Heating Options:
    • Compatible with electric, natural gas, or propane
    • Heat chambers can be top-, rear-, or side-mounted
    • Standard temperature range: 150°F to 300°F
    • Custom temperature ranges available

• Support & Assembly:

• • Steel support structure
  • Bolt-together assembly for easy installation
• Control System:
  • PLC control panel with HMI (Human-Machine Interface)
  • Continuously monitors all systems for safety and performance
• Fuel Options:

• Compatible with electricity, natural gas, or propane

• Safety Compliance:
  • Includes airflow switches and interlocks
  • Gas manifold with FM insurance-compliant valves
  • Meets NFPA 86 standards for ovens and furnaces

📌 Options Available

• Higher temperature ranges
• 6-pound mineral wool batt (more insulation)
• Insulated or sheet metal floor
• Exhaust duct parts
• Oven cart
• Door limit switches

📌 Model Variations

Batch ovens are available in different sizes, including widths of 5′, 6′, 8′, and 10′, with depths ranging from 6′ to 20′. All models typically include:

• Recirculation fan airflow: 1,800 – 20,000 CFM
• Burner size: Standard 670,000 BTU
• Exhaust fans: 750 – 1,500 CFM
• Exhaust duct size: 8″ or 10″
• Gas connection: 1″

For instance:

• Model GBO-081020 (8′ x 10′ x 20′) offers 20,000 CFM airflow, 15 HP motor, and 1,500 CFM exhaust fan.
